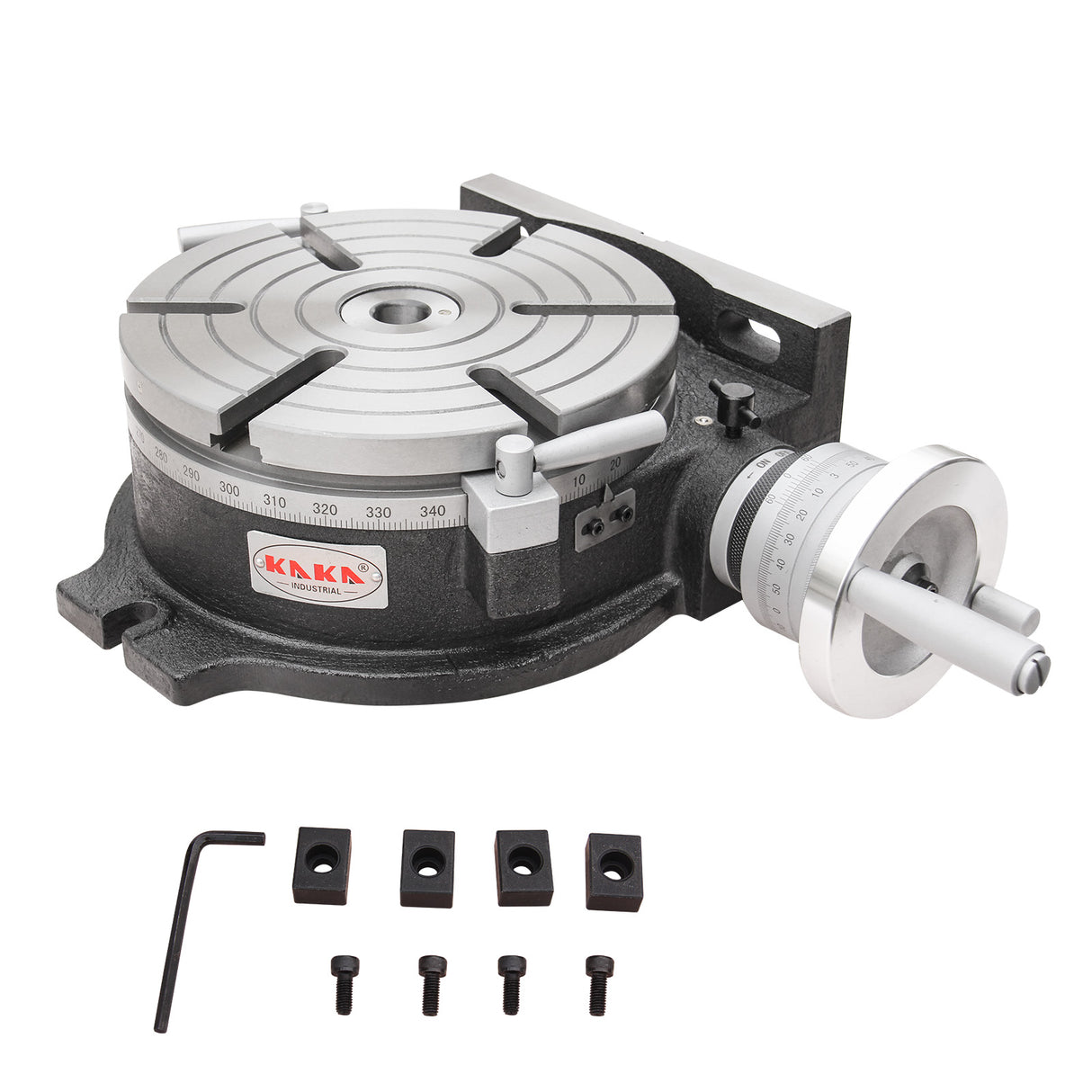

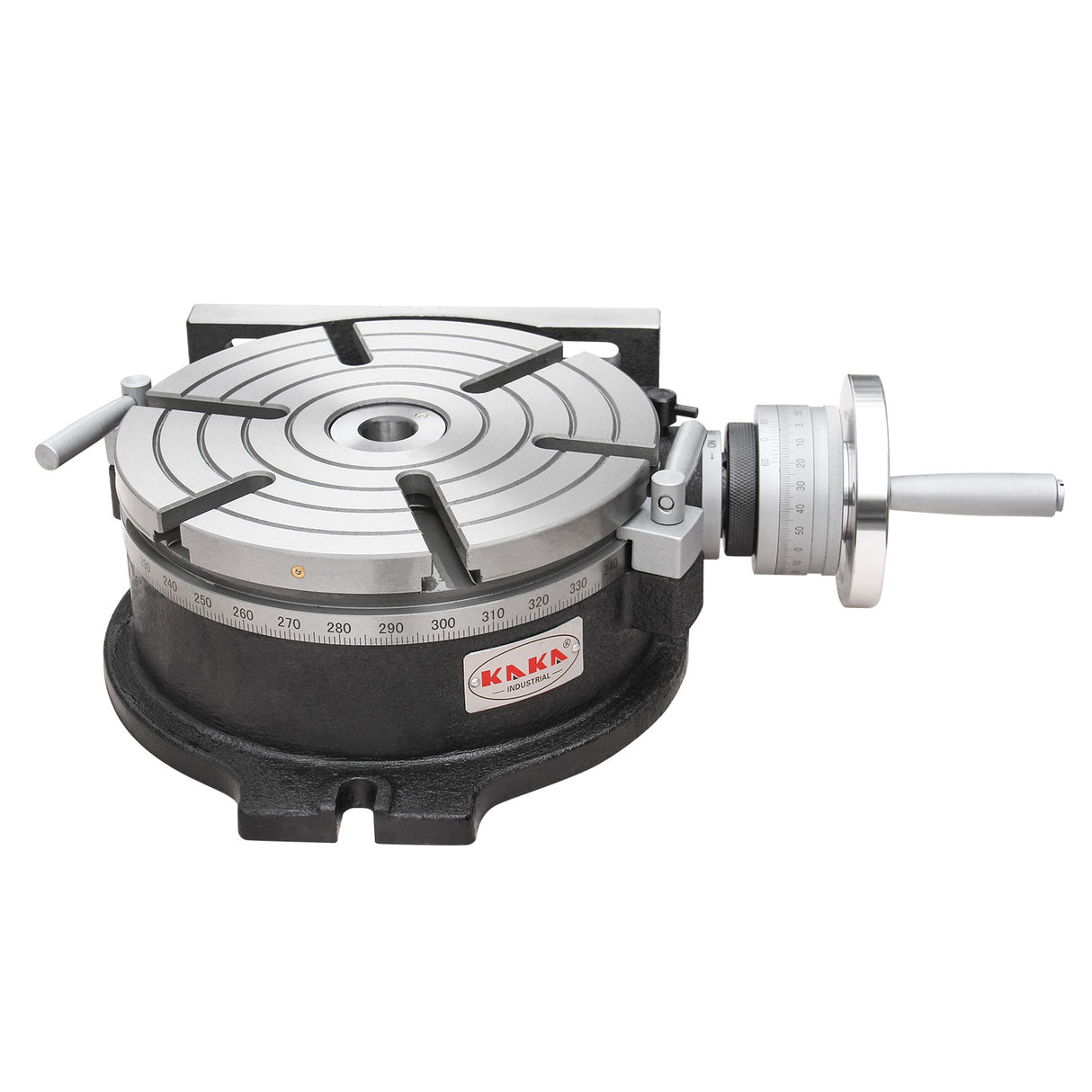

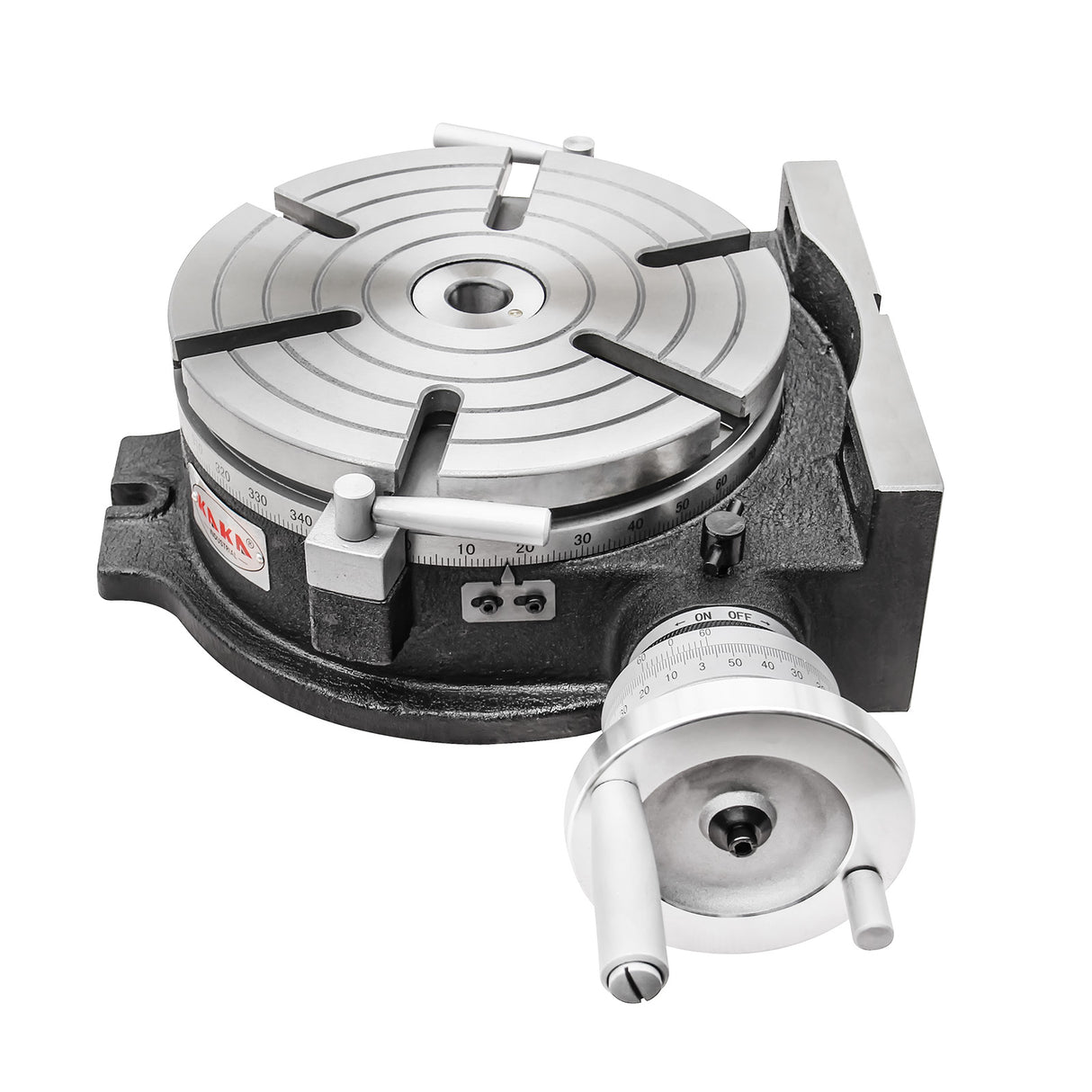

Kaka Industrial HV-10, 10" Horizontal Vertical Rotary Table TSL Vertical & Horizontal MT3 Center Sleeve Rotary Table 6 slot Precision Milling Table 360 Degrees Precision Rotary Table
Kaka Industrial HV-10, 10" Horizontal Vertical Rotary Table TSL Vertical & Horizontal MT3 Center Sleeve Rotary Table 6 slot Precision Milling Table 360 Degrees Precision Rotary Table is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on milling machine. With optional tailstock, the rotary table can be used on complex work for circle index boring and milling.
1.Rigid cast iron body.Dual positive-action lock
2.One rotation of handle equals 4 on collar

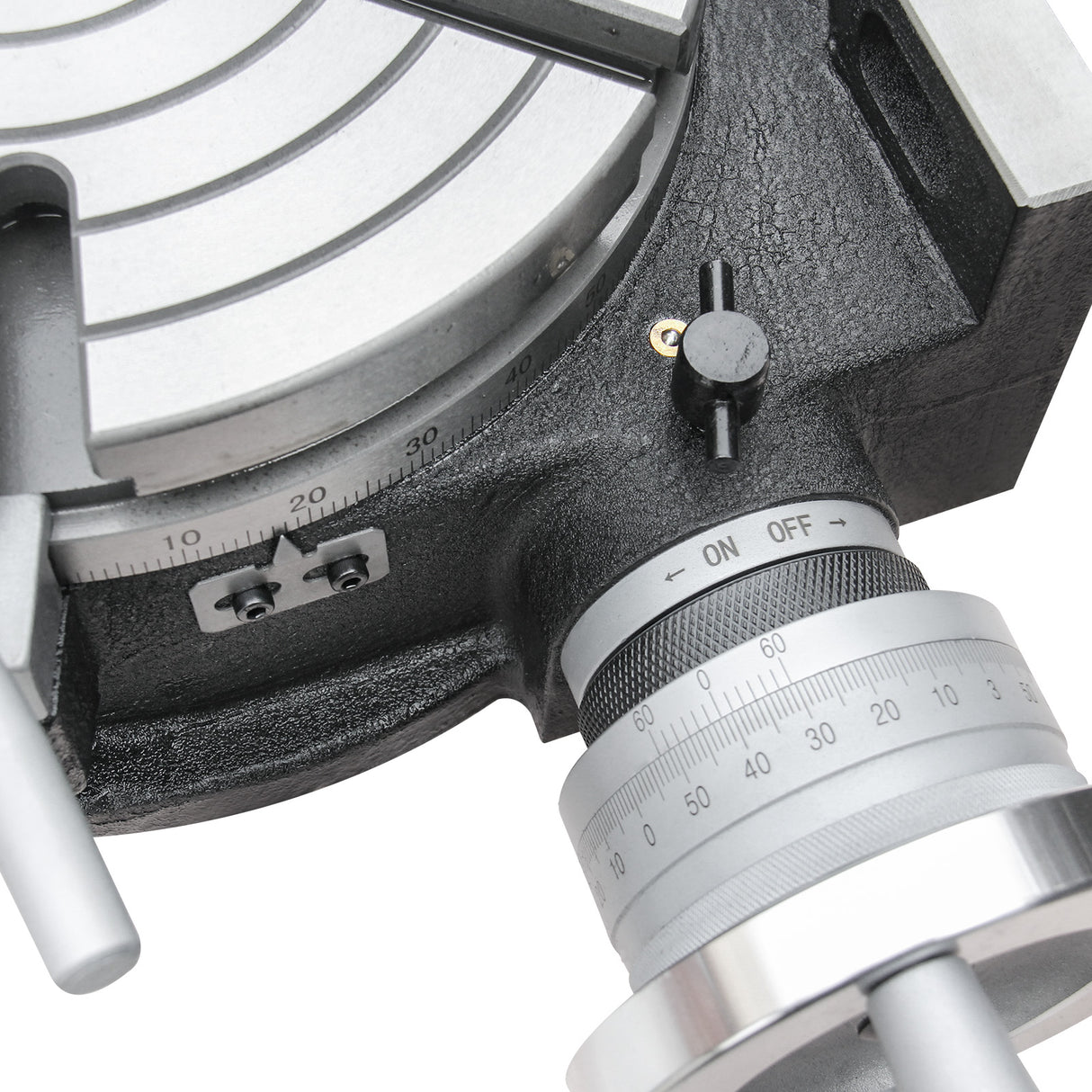

3.Min.10 second vernier reading
4.Gear ratio HV-4 1:72 HV6,HV-8,HV-10,HV-12 1:90
5.Harden and precision ground.Stain chrome dial

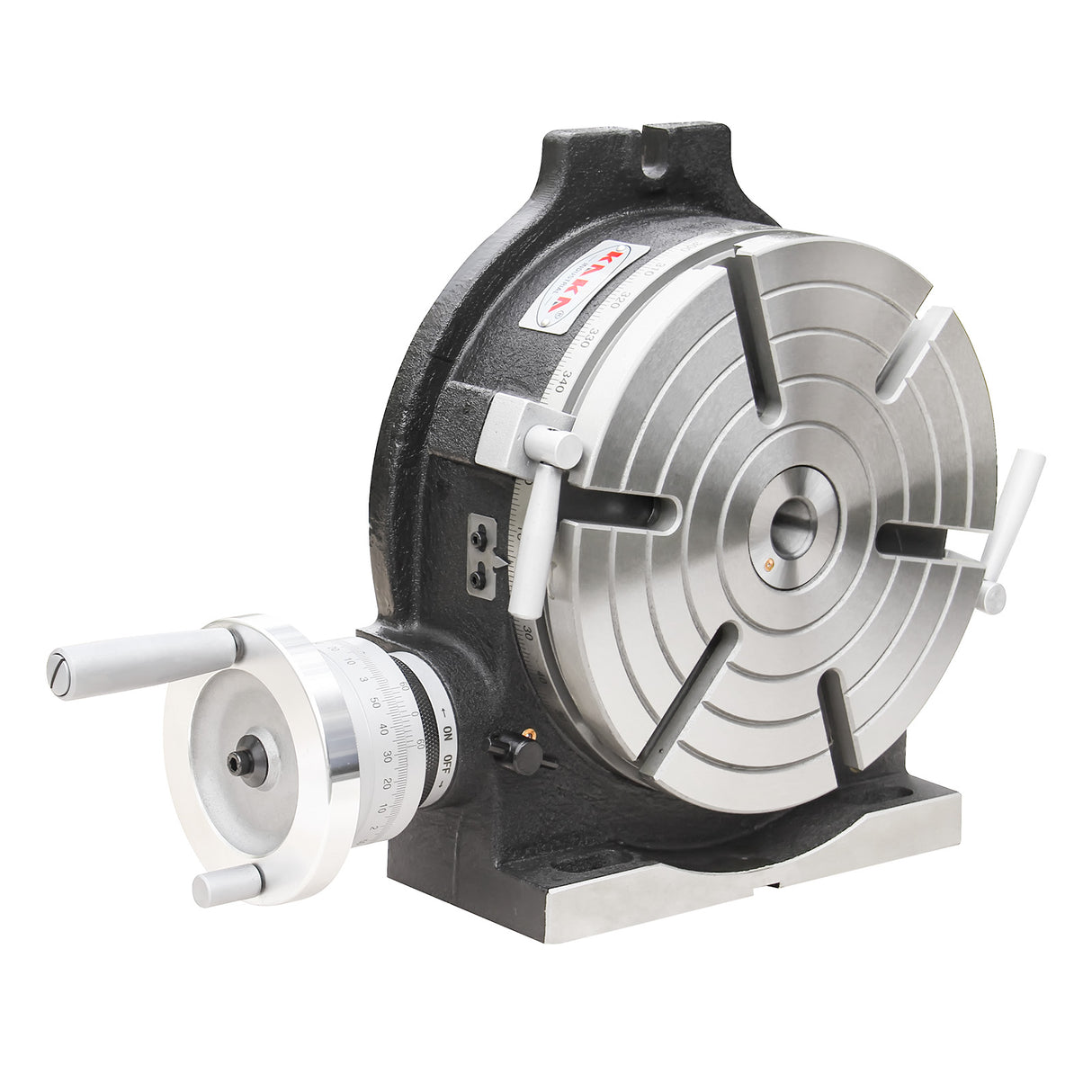

1. OD10" Horizontal Vertical Rotary Table
2. Suitable for milling and drilling works
3. MT3 Spindle taper
4. Table made of high-quality cast iron, sturdy sturcture
5. Hardened and grounded worm shaft
6. 2 clamping lever for clamping of the table

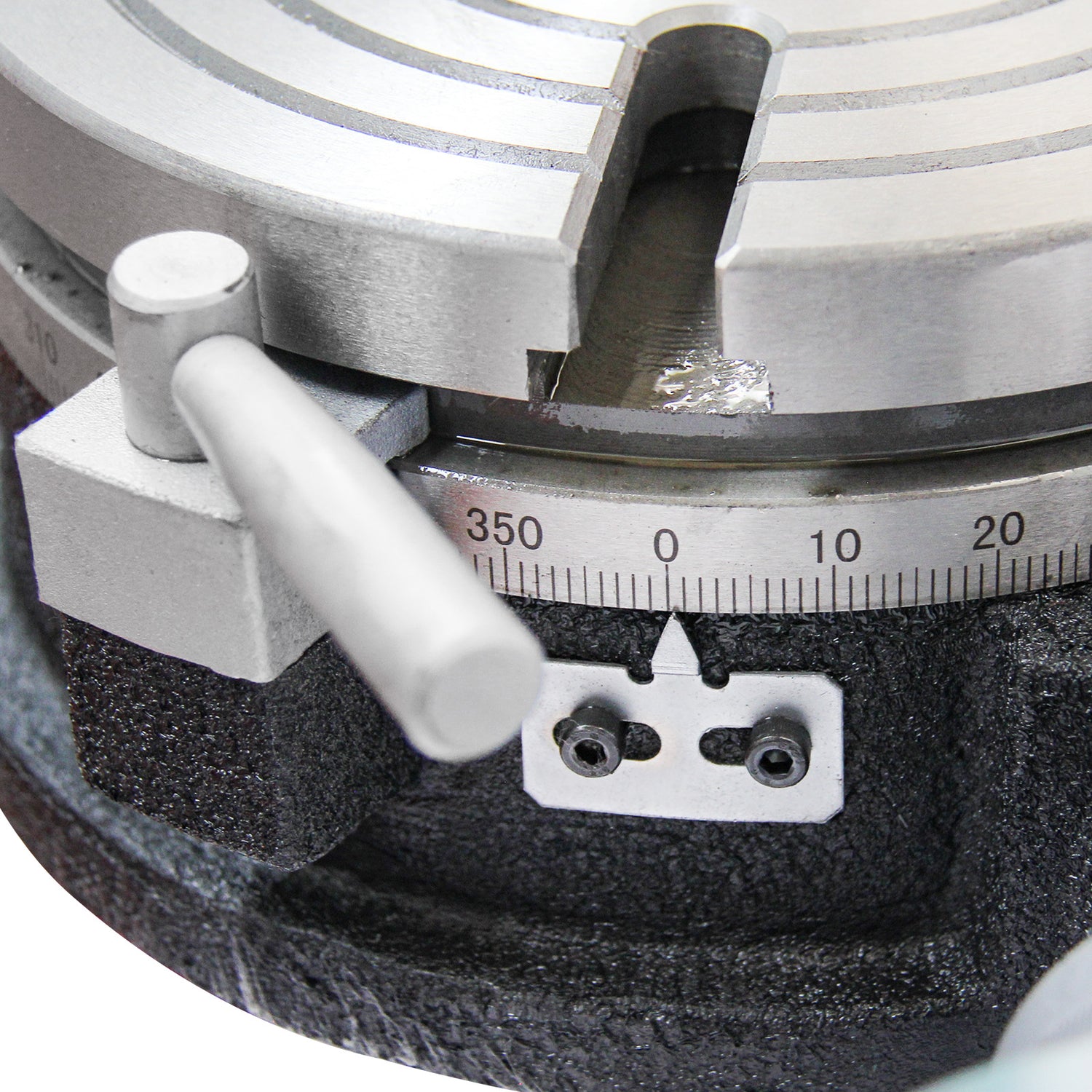

7. Direct indexing via 360° scale mounted on the table
| Item No. | 161110 |
| Model | HV-10 |
| Diameter of the table | ∅10" /250mm |
| Morse taper of the center hole | MT3 |

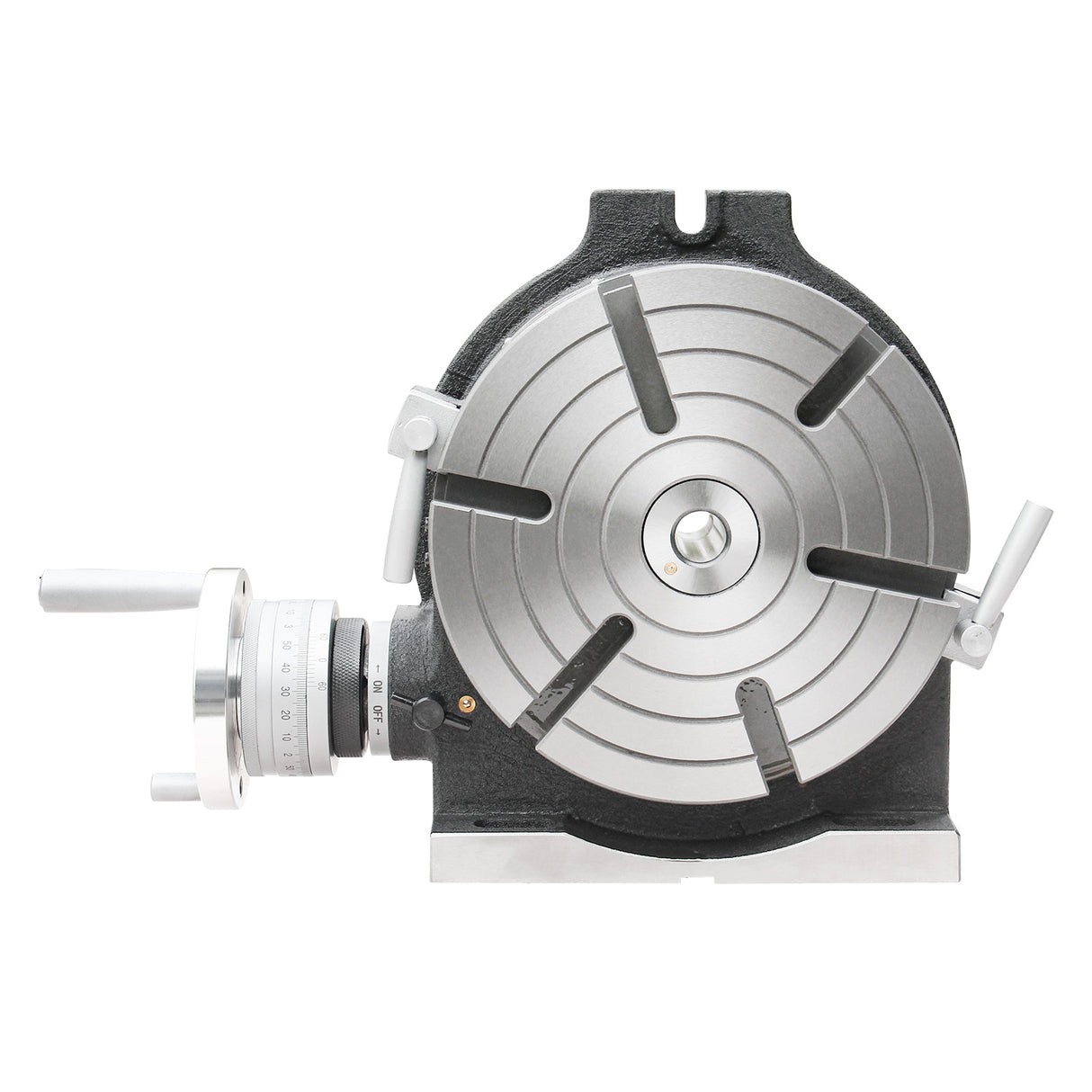

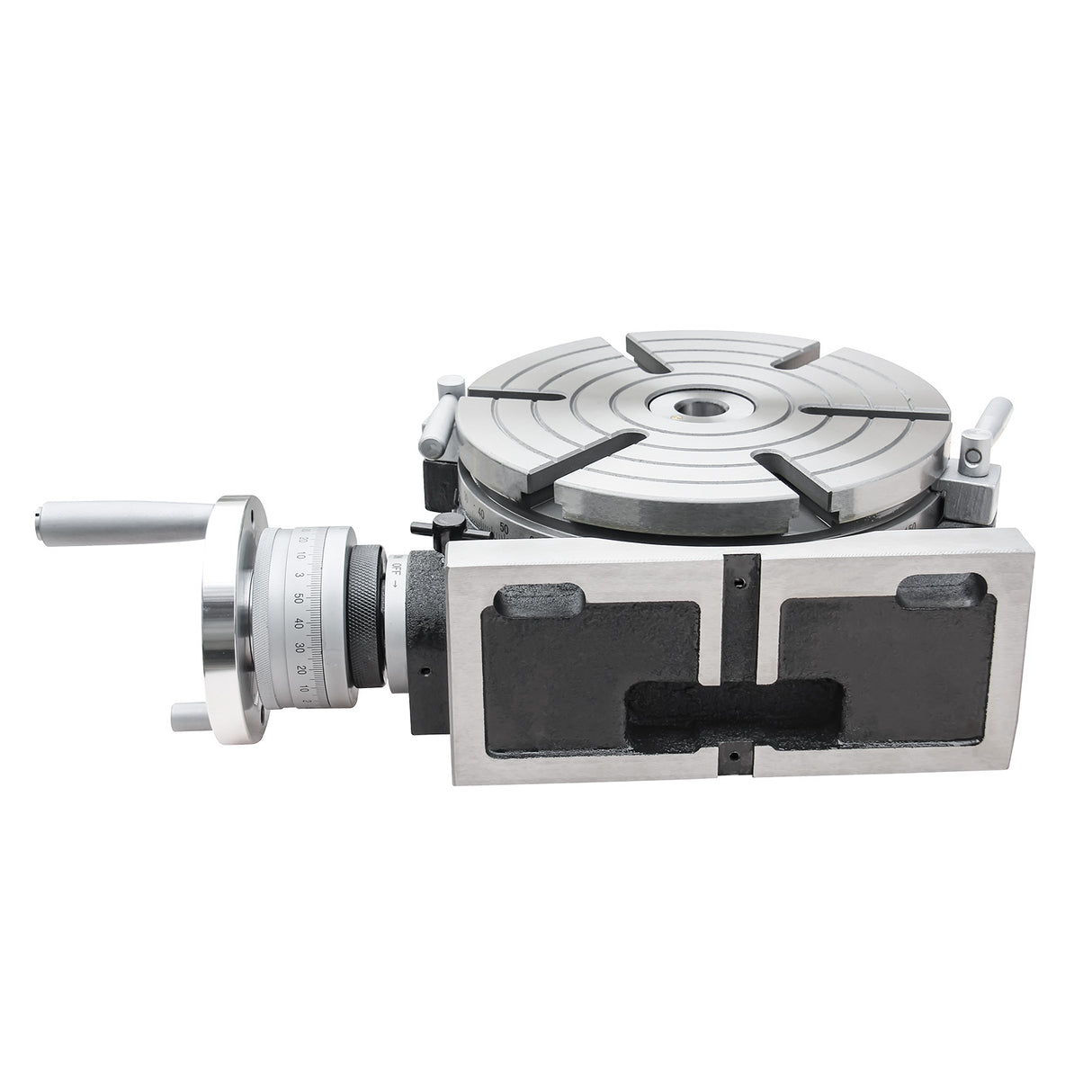

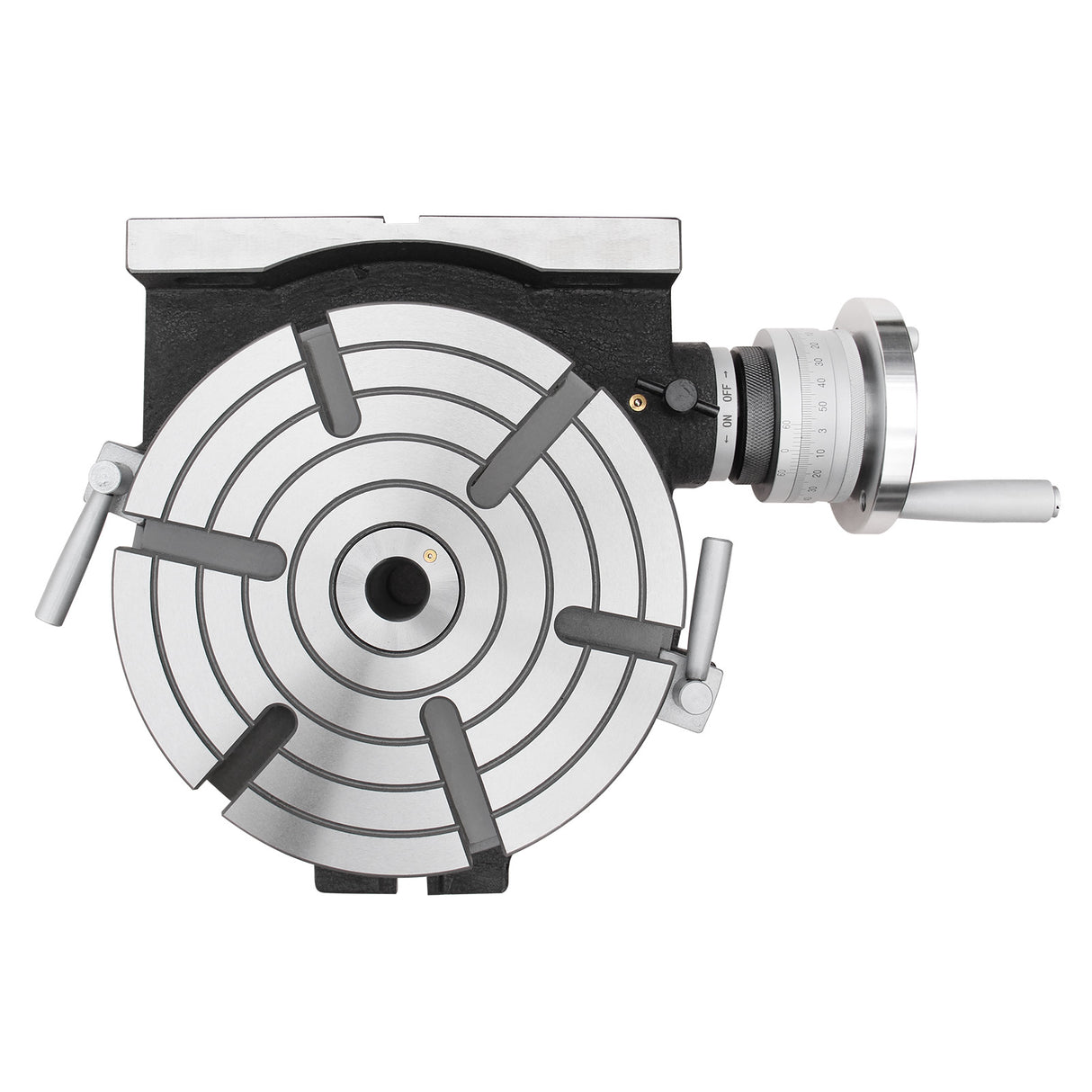

| Height of center for vertical mounting | 6.5" /165mm |

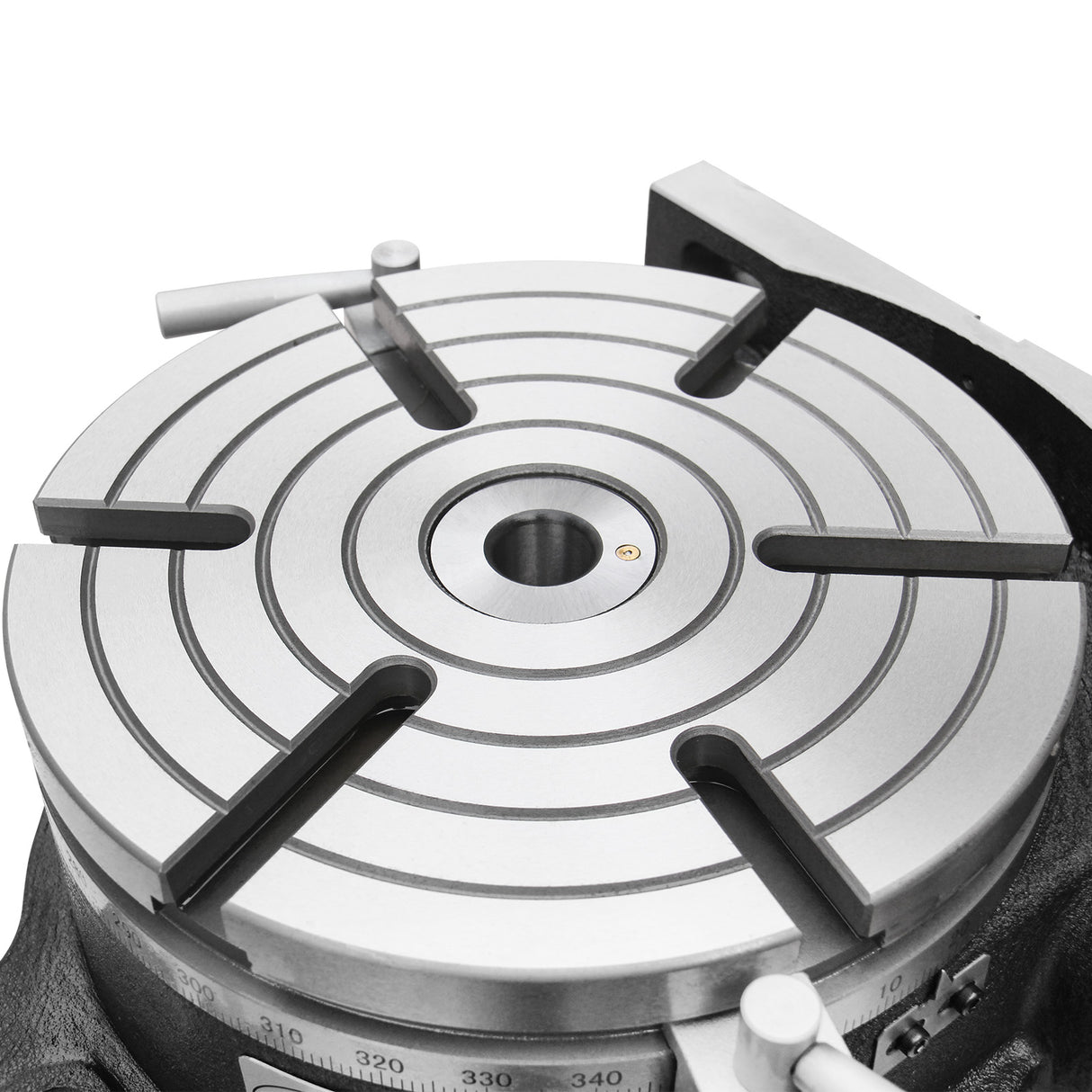

| Width of T-slot | 0.55" /14mm |
| Adjacent angle of T-slot | 60° |
| Width of the locting key | 0.63" /16mm |
| Modules of worm and worm gear | 1.5 |
| The transmission ratio of the worm gear | 1:90 |
| Graduation of the table | 360° |
| Rotating angle of table with one revolution of the worm | 4″ (1' Per graduation) |
| Minimum value of vernier | 10″ |
| Indexing accuracy | 60″ |
| Max. bearing(With table Hor.) | 440 lbs |
| Max. bearing(With table ver.) | 220 lbs |
| Packing size | 17"x14"x7" |
| N.W./G.W. | 86/90 lbs |
