KAKA INDUSTRIAL LLC  |  SKU: 188122V230B

KAKA Industrial BS-126G Dual Miter 12"x6" Capacity Metal Cutting Band Saw Built-in Coolant Double Blade Speed Horizontal Saw with 230V 3 Phase Motor

$3,489.99 $5,499.99
Shipping calculated at checkout.

Powerful Cutting Ability

This bandsaw has a 0.75 kW / 1.1 kw,two-speed motor. The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately.The blade dimension is1.06“×0.035"×111.22”.
The bandsaw can cut through cylindrical metal workpieces with a maximum diameter of 9 ".Additionally, the bandsaw can cut rectangular metal workpieces with dimensions of up to 12.4" x6.7 ".
Versatility and Flexibility

This band saw has all the features needed for professional results in metal cutting, allowing users to perform a variety of cuts, from straight and curved cuts to complex designs.
The head of this dual-miter metal cutting band saw can be rotated 60° to the right and 45° to the left.
Equipped with a hydraulic down feed and variable speed control, you'll have complete control over the cutting process, ensuring precise and efficient results every time. Plus, the built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.
Say goodbye to tedious setups and hello to convenience with the fast-release clamp vise. It allows quick and secure material clamping, saving you valuable time and effort.
For more convenience, this metal cutting band saw features adjustable roller blade guides and an adjustable bar-stop device to accommodate different materials.
Safety

Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process.
Accident-preventing devices are on the flywheel casing and on the blade. An interlocking guard covers the upper area of the blade, and the hand wheels and two adjustable lower guards safeguard the operator from ejected shavings and coolant.
The band saw features a coolant system and an automatic shut-off setting. The blade switches off automatically when the task is completed, and a built-in coolant system protects overheated saw blades for smooth, safe, and continuous operation. The front panel also has an emergency stop button and a START button.
Wide Applications

The band saw is a versatile tool used in various applications, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

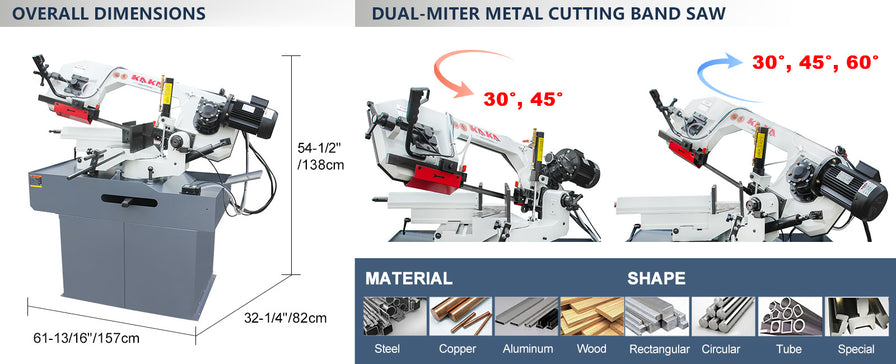

Dual Miter

Dual miter metal cutting band saw.
It can be rotated 60° to the right and 45° to the left.

Item No.
188122
Model
BS-126G
Circular @ 90°
9"
Rectangular @90°
12.4"x6.7"
Circular @ 60° (Right)
5"
Rectangular @60° (Right)
5"x5"
Circular @45° (Left & Right)
8.25"
Rectangular @45° (Left & Right)
8.25"x6.7"
Blade speed @60Hz
48/96 MPM
Blade size
1"x0.035"x111-1/5"
Motor power
0.75/1.1 kW
Drive
Gear
Packing size
64"x35"x38" (body)
29"x22"x24" (stand)
N.W./G.W.
771/859 lbs

  • Hydraulic Cylinder Hydraulic down feed offers maximum control and a micro-adjustable feed rate for longer blade life.

  • Cooling System

    A cooling system with two cooling nozzles ensures safe and extended blade life.

  • Stop Bar

    The bar-stop device allows presetting the desired length and repeating the cut.
