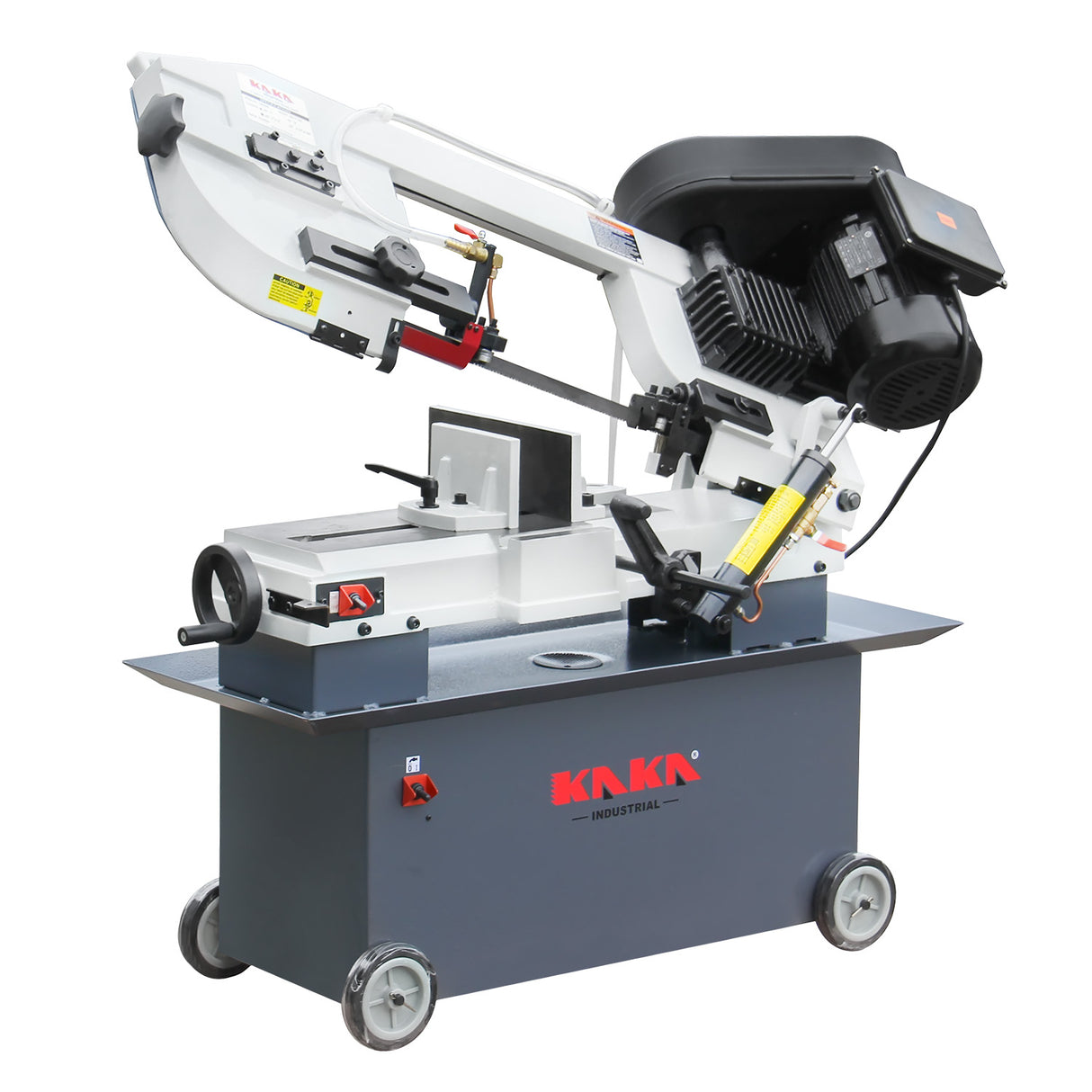

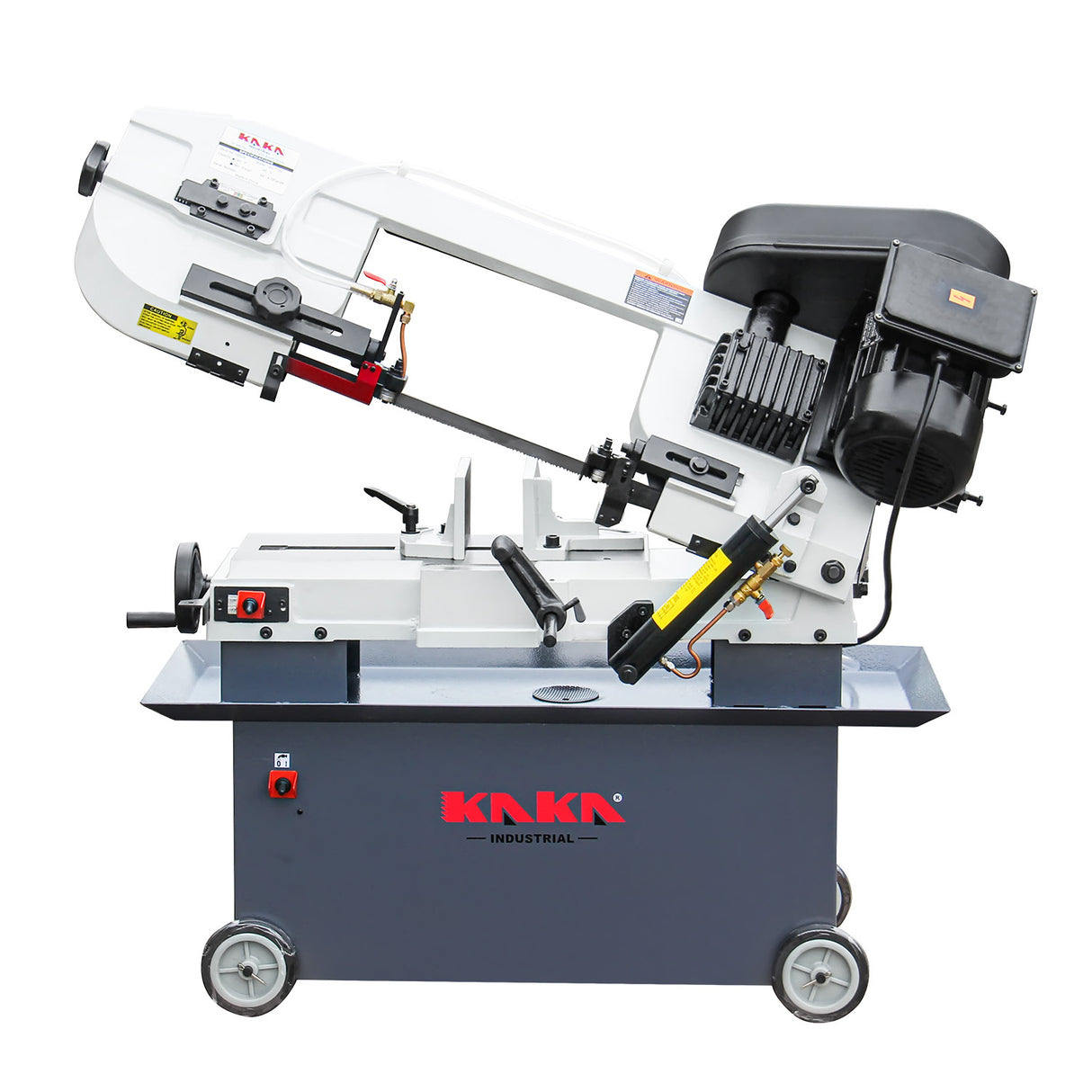

KAKA Industrial horizontal band saw 7"x12" Capacity BS-712N, metal cut band saw, 4 step blade speeds by pulley wheel driven, Metal Horizontal Band Saw, metal band saw with 1.5HP motor 115V / 230V 1PH
KAKA Industrial horizontal band saw 7"x12" Capacity BS-712N, metal cut band saw, 4 step blade speeds by pulley wheel driven, Metal Horizontal Band Saw, metal band saw with 1.5HP motor 115V / 230V 1PH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Cutting Ability
This bandsaw is equipped with a dual-voltage 115V or 230V single-phase motor that is pre-wired for 115V. You can also rewire as needed.

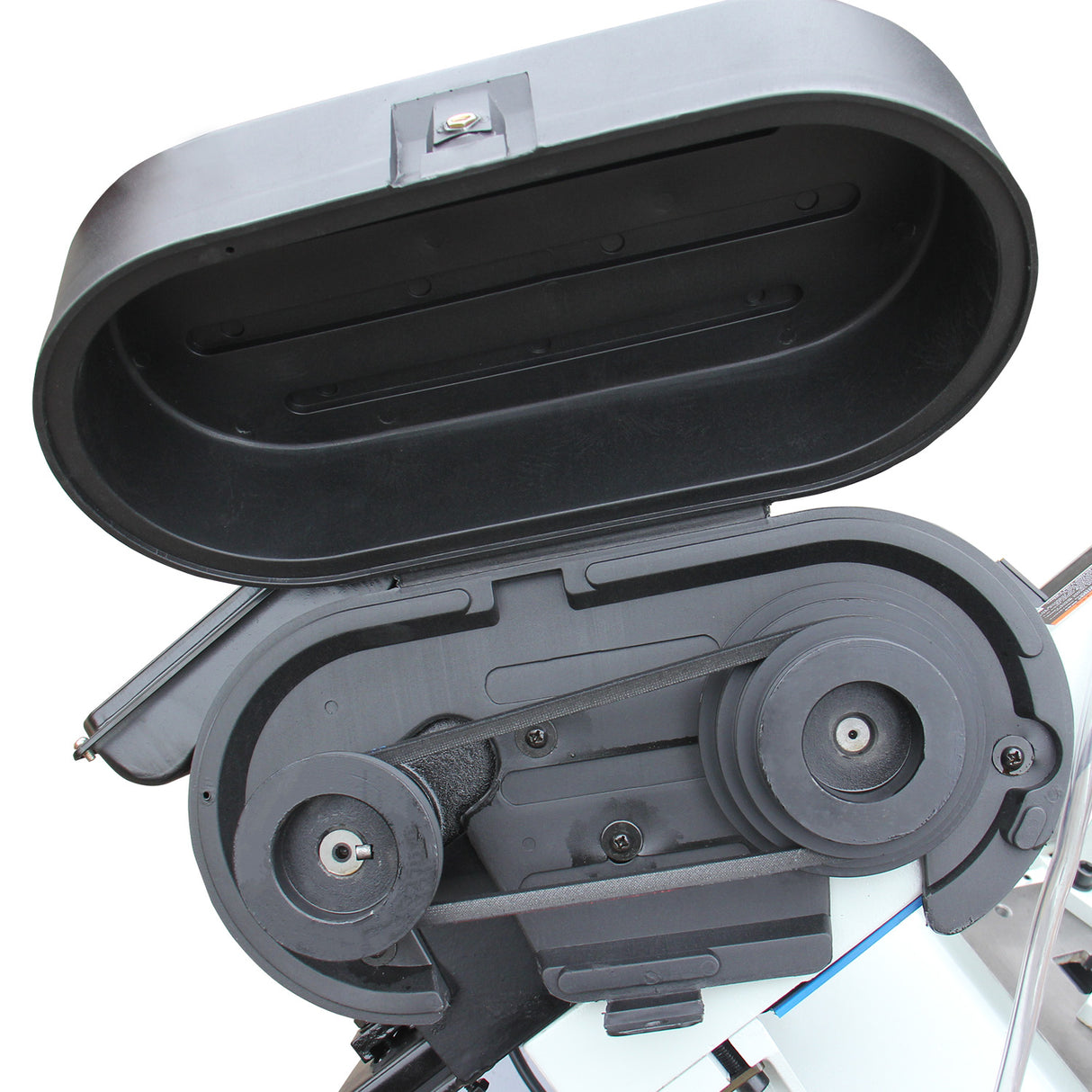

Two pulley wheels offer four-step speeds for adjustable blade speed. The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately.

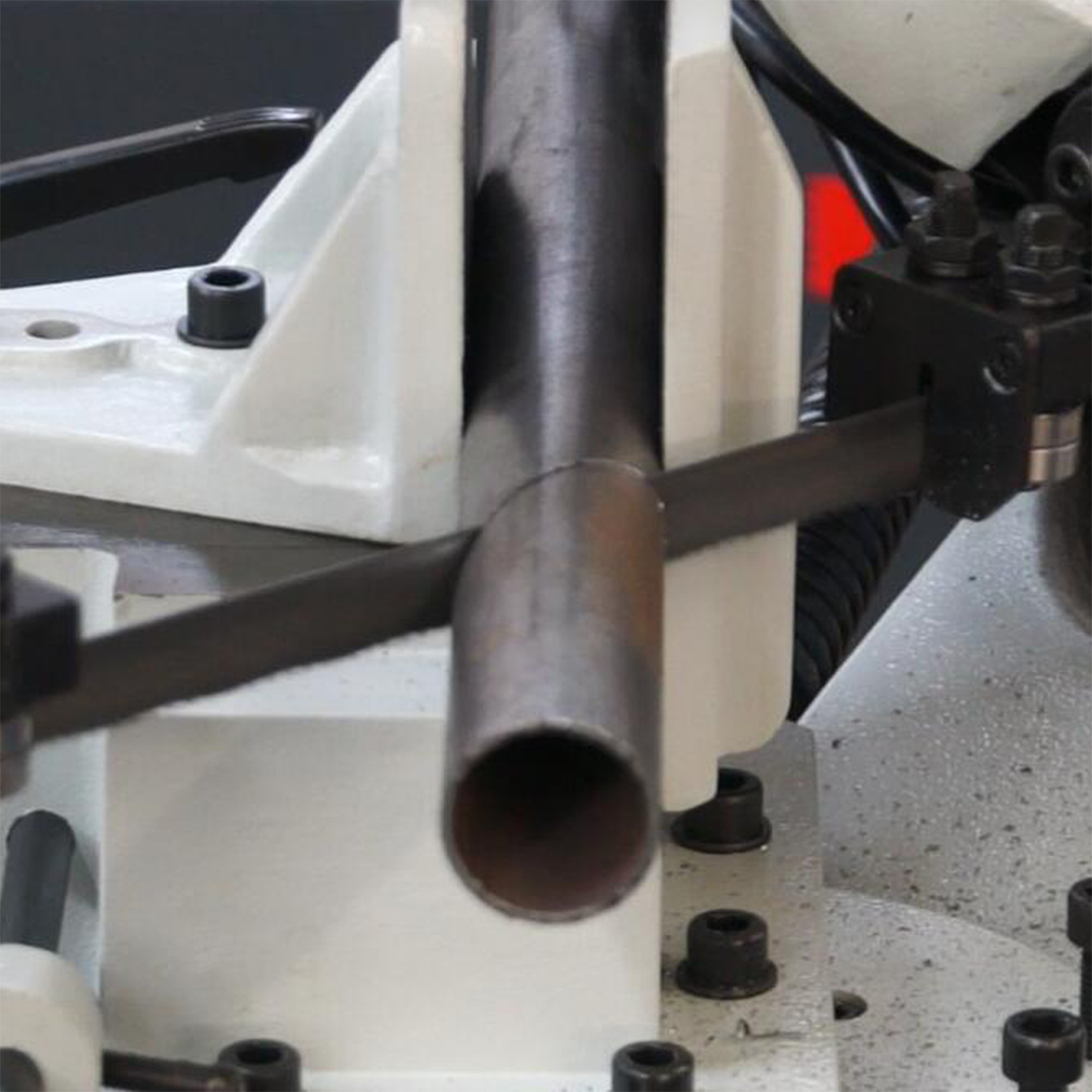

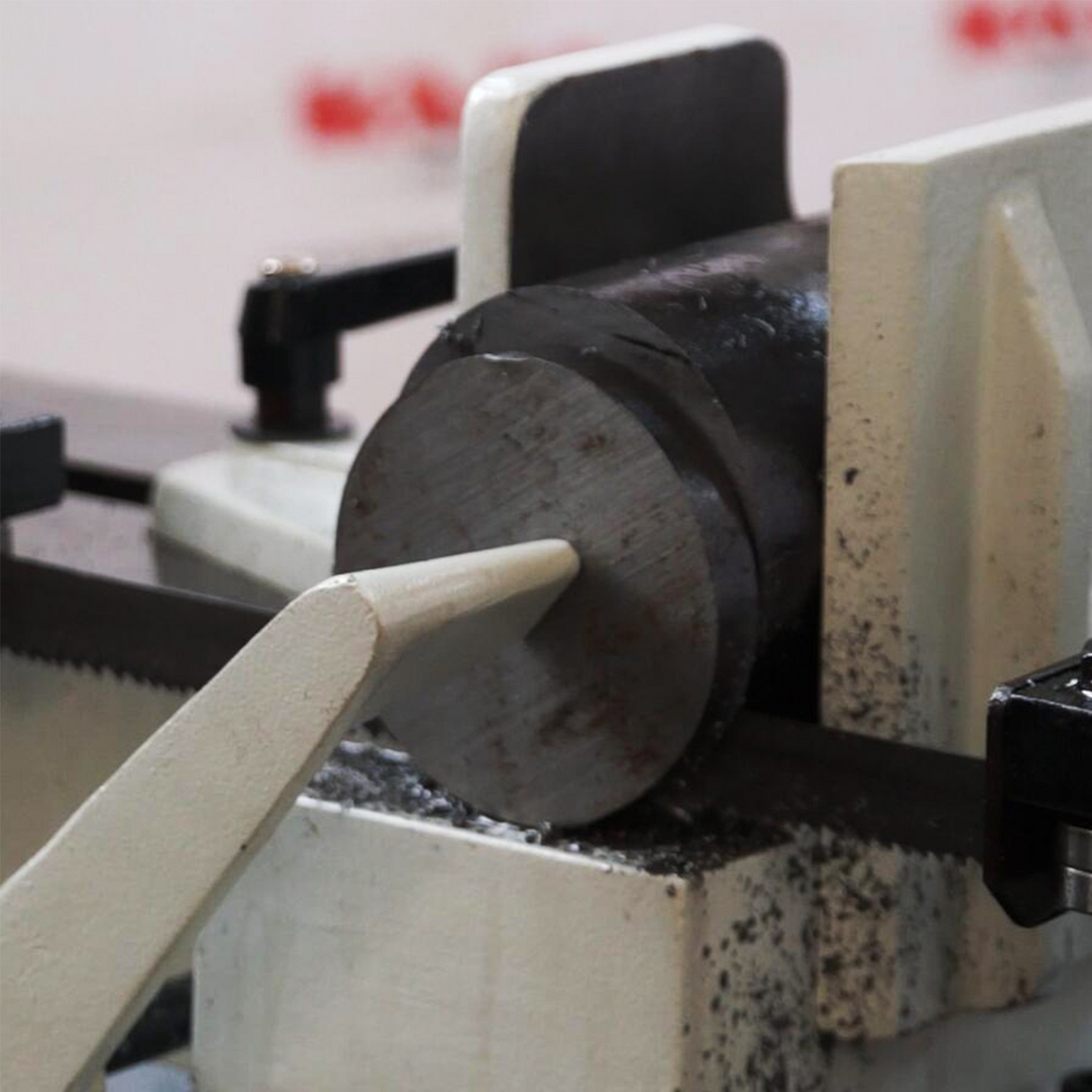

The bandsaw can cut through cylindrical metal workpieces with a diameter of up to 7 inches and is suitable for cutting round bars, pipes, and other cylindrical stock materials. Additionally, the bandsaw can cut rectangular metal workpieces with dimensions of up to 7 inches in width and 12 inches in length, making it ideal for cutting flat or rectangular stock materials such as steel plates or structural beams.
Versatility and Flexibility
This horizontal/vertical band saw has all the features needed for professional results in metal cutting, allowing users to perform a variety of cuts, from straight and curved cuts to complex designs.
Switching between horizontal and vertical cutting modes on the same machine is quick and easy. Compared to using multiple machines, this saves time and effort and greatly improves production efficiency.
Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts.
Wheels on the base make the machine movable, saving space and making transportation more accessible.
Safety
The band saw features a coolant system and automatically shuts off the settings.
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process.

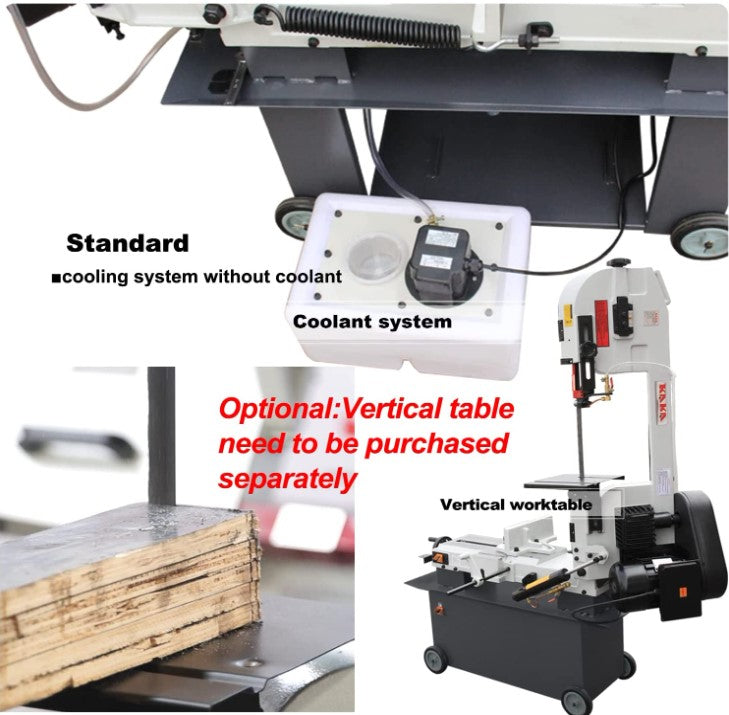

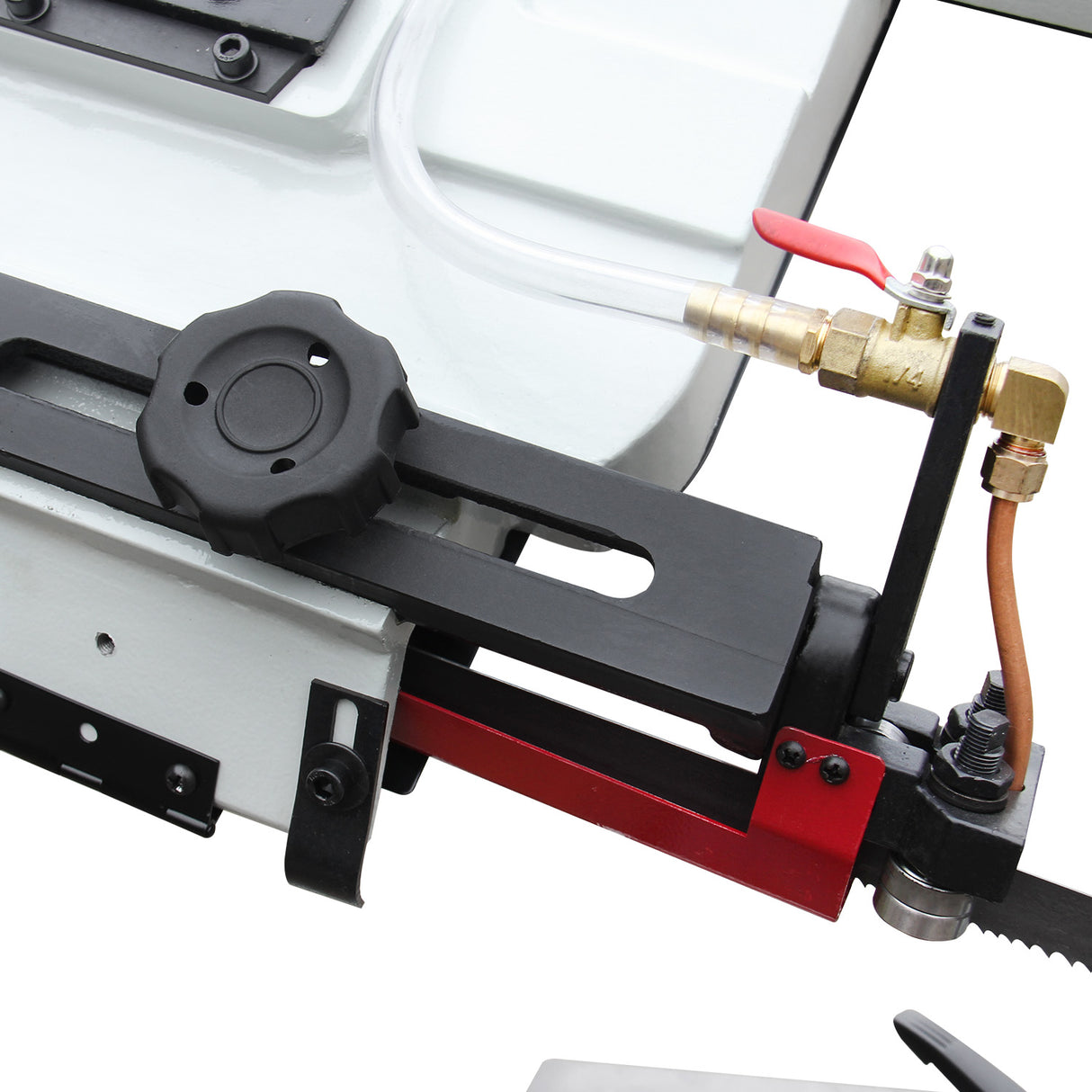

The band saw blade switches off automatically when the task is complete, and a built-in coolant system protects overheated saw blades for smooth, safe, and continuous operation.
Extensive Use
The band saw is a versatile tool used in various applications across different industries and settings, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.
Horizontal and Vertical Metal Cutting Band Saw

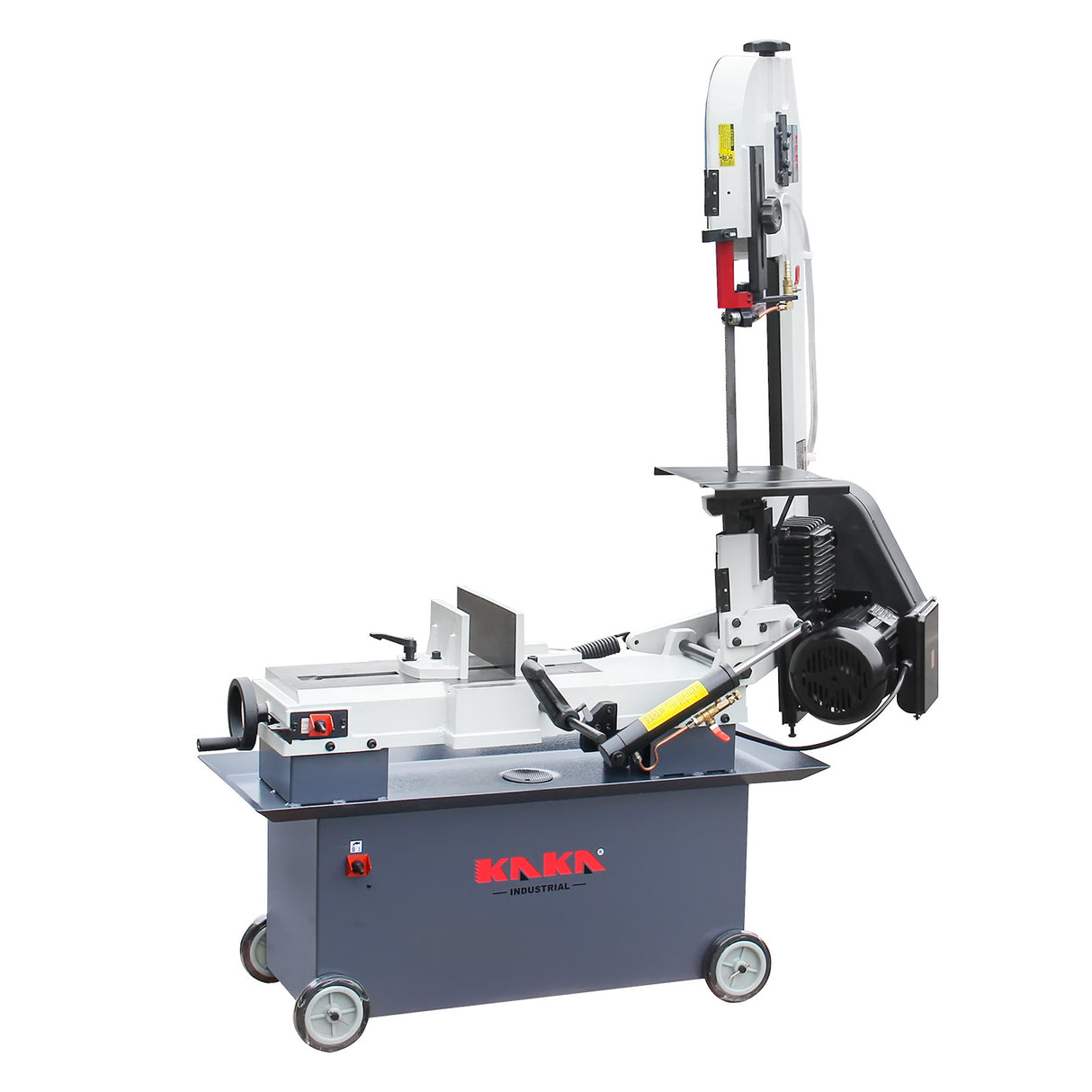

You could operate the band saw vertically.
This type of band saw allows users to perform a wide range of cuts, from straight and curved cuts to intricate designs. This machine can do it if you need to rip board, resaw thick stock, or create complex shapes.
Switching between horizontal and vertical cutting modes on the same machine is quick and easy. Compared to using multiple machines, this saves time and effort and greatly improves production efficiency.

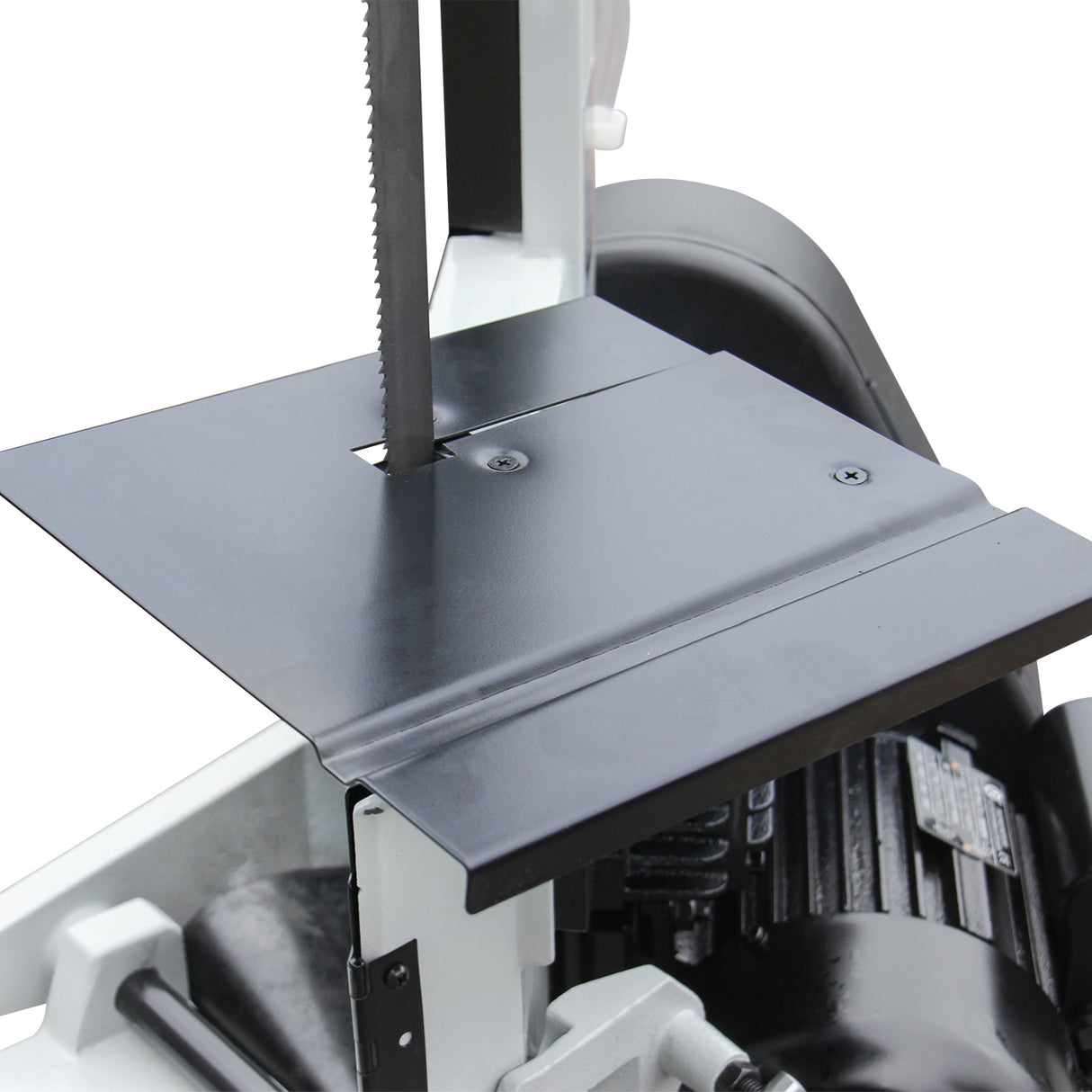

Vertical working position available with optional worktable.
| Item No. | 188006 |
| Model | BS-712N |
| Circular @ 90° | 7" |
| Rectangular @90° | 7"x12" |

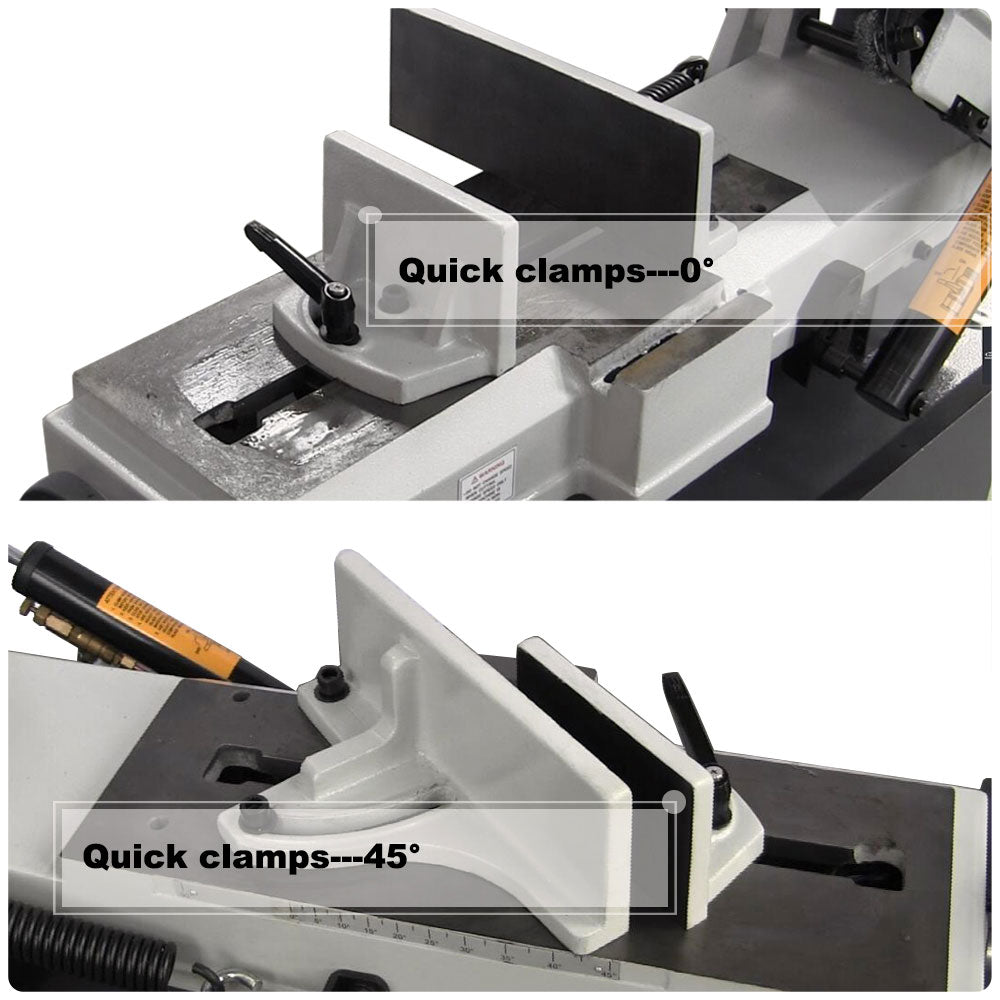

| Circular @45° | 5" |
| Rectangular @45° | 4.75"x4.88" |
| Blade speed @60Hz | 27,41,59,78 MPM |
| Blade size | 0.75"x0.035"x93" |
| Motor power | 1.0KW 1.5HP |
| Drive | V-belt |
| Packing size | 50"x20"x45" |
| N.W./G.W. | 308/396 lbs |
